TL431BCP DIP-8

  • Image
₹ 175.00
  • In Stock
  • 1
Adjustable Output Voltage: The output voltage can be adjusted between Vref (approximately 2.5V) and 36V using two external resistors.Precision Reference: Offers high precision with a reference voltage tolerance of 0.5% (for the 'B' grade) at 25°C.Wide Operating Temperature Range: Operates reliably over a wide temperature range, from -40°C to +125°C.Low Output Noise: Features low output noise, making it suitable for noise-sensitive applications.Low Output Impedance: Has a typical output impedance of 0.2?.High Sink-Current Capability: Can sink currents from 1mA to 100mA.Thermal Stability: Specified thermal stability over applicable automotive, commercial, and military temperature ranges.Replaces Zener Diodes: Its characteristics make it an excellent replacement for Zener diodes in many applications.

Variants:

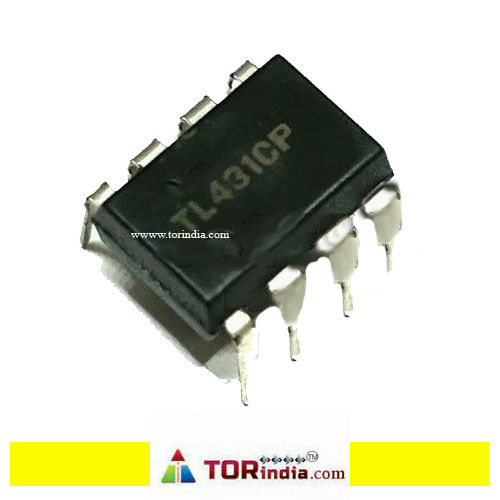

var-image
Add To Cart Buy Now
Category: NO IC-FET-SMD-TRANSISTOR

Rating And Reviews

Average User Rating

0

Rating Breakdown

5
0
4
0
3
0
2
0
1
20% Complete (primary)
0

TL431BCP DIP-8

NO IC-FET-SMD-TRANSISTOR

Description: IC VREF SHUNT ADJ 8DIP

Detailed Description: Shunt Voltage Reference IC 36V ±0.40mA 8-PDIP

Reference Type: Shunt

Output type: adjustable

Voltage - Output (min/fixed): 2.495V

Voltage - Output (max): 36V

Current - Output: 100mA

Tolerance: ±0.4%

Temperature coefficient: standard value 50ppm/°C

Noise - 0.1Hz to 10Hz: -

Noise - 10Hz to 10Hz: -

Voltage - Input: -

Current - Power:-

Current - Cathode: 1mA

Working temperature: 0°C ~ 70°C (TA)

Mounting type: Through hole

Package/Enclosure: 8-DIP (0.300", 7.62mm)

Supplier Device Package: 8-PDIP

Other names: TL431BCPOS
