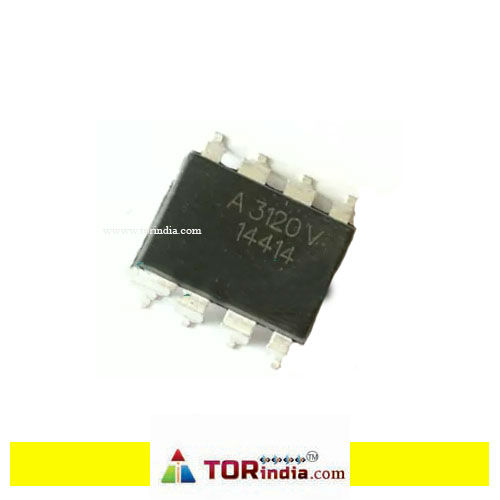

High Output Current: Provides a minimum peak output current of 2.0A, suitable for driving a wide range of power devices. The A3120 has a 2.5 A output.High Operating Voltage Range: The output stage's high operating voltage range provides the necessary drive voltages for gate-controlled devices.High Common Mode Rejection (CMR): Offers a minimum CMR of 15 kV/µs at VCM = 1500V, ensuring robust performance in noisy electrical environments.Low Output Voltage (VOL): Features a maximum low-level output voltage of 0.5V, potentially eliminating the need for a negative gate drive in some applications.Under Voltage Lock-Out Protection (UVLO): Includes UVLO protection with hysteresis, safeguarding the output stage when the supply voltage is insufficient.Wide Operating VCC Range: Operates from a supply voltage between 15V and 30V.Fast Switching Speeds: Boasts a maximum switching speed of 500ns.Industrial Temperature Range: Suitable for industrial applications, operating over a temperature range of -40°C to 100°C.Safety Approvals: UL Recognized (2500 Vrms for 1 minute per UL1577), CSA Approved, and VDE 0884 Approved with VIORM = 630 Vpeak
