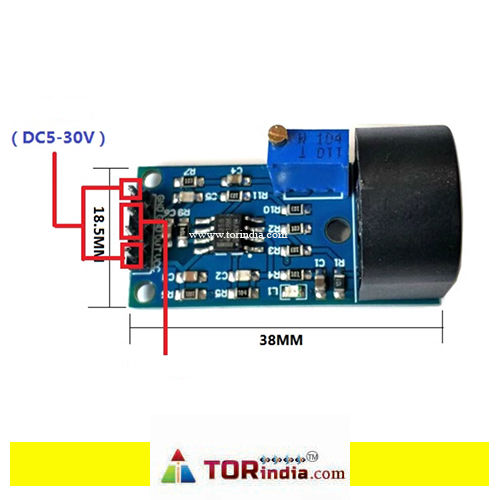

ZMCT103C Precision Current Sensor 5A range single phase AC active output current transformer module current sensor

• Rated Input Current: 0 to 10A
• Rated Output Current: 5mA at 5A input
• Turns Ratio: 1000:1
• Phase Angle Error: ?15' (at 5A input, with a 50? sampling resistor)
• Accuracy Class: 0.2
• Linearity: ?0.2% (within 5% to 120% of the rated input)
• Isolation Voltage: 4500V
• Operating Temperature Range: -40°C to +85°C
• Encapsulation Material: Epoxy resin
• Mounting: PCB mounting with pin length >3mm

Module Features:

• Integrated Sampling Resistor: Facilitates direct voltage output corresponding to the measured current.
• High-Precision Operational Amplifier Circuit: Ensures accurate signal amplification and compensation.
• Adjustable Output: The module includes a potentiometer to adjust the amplification ratio, allowing the output voltage to be fine-tuned as needed.

Applications:

• Precise AC current measurement
• Energy metering
• Overcurrent protection
• Ground fault detection
• Industrial automation
