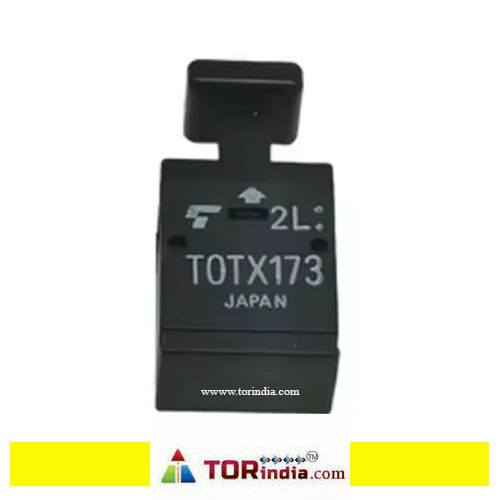

TOTX173 OPTICAL connector

model:                                             TOTX173

Risk Level:                                        5.8

Body Width:                                     13 mm

Body height:                                     8.5 mm

Body Length or Diameter:                  15.5 mm

Data Rate:                                        6 Mbps

Emitter/Detector Type:                      LED

Fiber optic equipment type:               TRANSMITTER

Fiber Type:                                       970/1000, POF

Installation features:                         THROUGH HOLE MOUNT

Maximum Operating Temperature:    70 °C

Minimum Operating Temperature:     -20 °C

Nominal operating wavelength:         660 nm

Nominal optical power output:          0.0158 mW

Maximum supply voltage:                  5.25 V

Minimum supply voltage:                  4.75 V

Nominal supply voltage:                    5 V

Surface Mount:                                 NO

Transmission Type:                           DIGITAL
