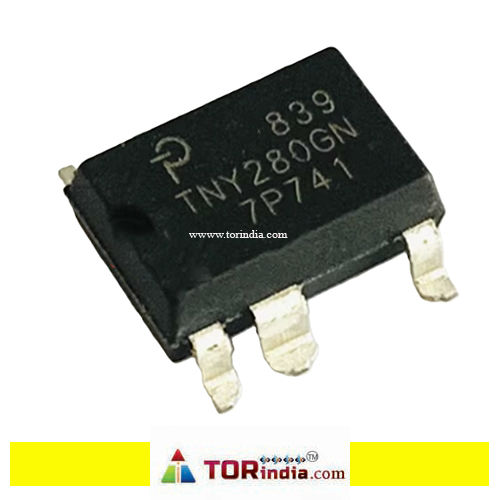

Integrated Design: It combines a 700V power MOSFET, oscillator, high-voltage switched current source, selectable current limit, and thermal shutdown circuitry into a single chip. This reduces the need for external components and simplifies the overall power supply design.ON/OFF Control: It utilizes a simple ON/OFF control scheme for output voltage regulation, eliminating the need for loop compensation.Selectable Current Limit: The current limit can be adjusted by changing the value of the BP/M capacitor, allowing for optimization based on the application's power requirements (peak power or open frame applications versus enclosed adapters/chargers).High Efficiency & Low No-Load Consumption: It offers low standby power consumption (Enhanced Safety and Reliability: Features include accurate hysteretic thermal shutdown with automatic recovery, improved auto-restart (EMI Reduction: Includes frequency jittering to help minimize EMI filter costs.Output Power: It can deliver up to 36.5W of output power at 230VAC (open frame) or 20W (enclosed). For universal input (85-265VAC), the output power is 28.5W (open frame) or 14W (enclosed).Packaging: The TNY280GN is housed in an SMD-8C (7 Leads)
