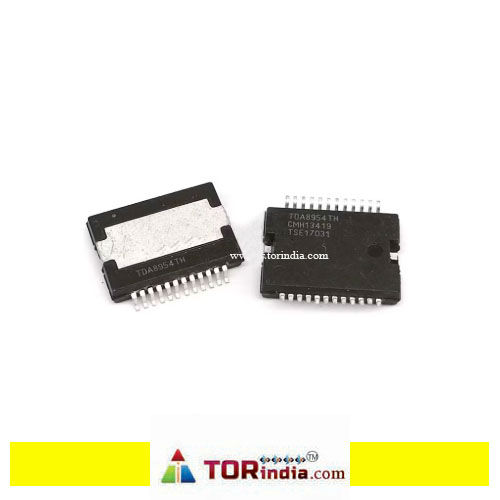

TDA8954TH SMD IC

• Supply Voltage Range: ±12.5 V to ±42.5 V
• Output Power:
  • Stereo SE: 2 × 210 W into 4 ?
  • Mono BTL: 1 × 420 W into 8 ?
• Efficiency: Approximately 93%
• Total Harmonic Distortion (THD): 0.05%
• Quiescent Current: Low, ensuring minimal power consumption when idle
• Operating Temperature Range: -40°C to +85°C
• Package: HSOP24 (Heatsink Small Outline Package)

Features:

• High output power with low power dissipation
• Stereo full differential inputs, usable as stereo SE or mono BTL amplifier
• Low noise and low distortion
• Smooth pop noise-free start-up and switch-off
• Two diagnostic pins for monitoring protection circuits
• Fixed frequency internal or external clock
• Zero dead time switching
• Advanced protection strategy including voltage protection and output current limiting
• Thermal FoldBack (TFB) with disable functionality
• Fully short-circuit proof across load

Applications:

• Home audio systems
• Professional audio equipment
• Active speaker systems
• Public address systems
