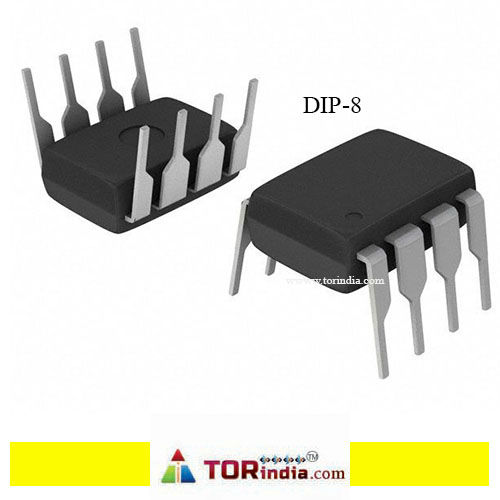

TDA7052A dip8

Output Power: 1.2 W (maximum) into 8 ohms with a 6V supply, although quality output is lower in practice.Bridge-Tied Load (BTL) Configuration: Maximizes output power by driving the load in a push-pull manner.DC Volume Control: Integrated into the input stage, eliminating the need for external coupling capacitors and maintaining a low offset voltage. This allows for smooth and clean volume adjustment without distortion.Low Quiescent Current: Typical quiescent current is 4 mA, making it suitable for battery-powered devices.Wide Supply Voltage Range: Operates with a supply voltage range of 4.5 V to 18 V.Missing Current Limiter (MCL): Built-in protection circuit that activates if the current difference between the output terminals (OUT+ and OUT-) exceeds 100 mA (typical 300 mA). This protects the amplifier and connected devices from damage due to short circuits or malfunctions.Mute Mode: Enables instant audio muting.Thermal Protection: Integrated to prevent overheating.Short-Circuit Proof: Designed to withstand short-circuit conditions at the output.Low Harmonic Distortion: 0.2% at 1 kHz and 0.5 W output.High Voltage Gain: Fixed at 35.5 dB.ESD Protection: Protected on all pins.

Variants:
