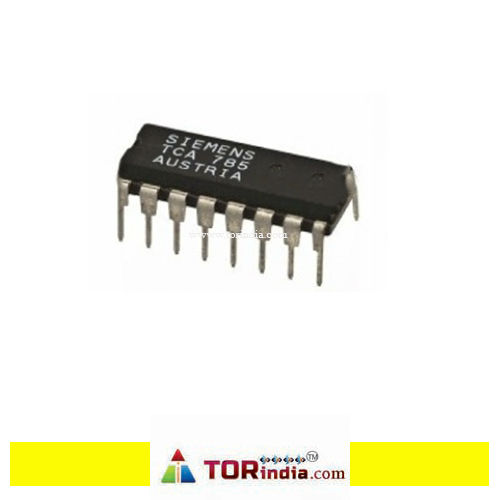

TCA785 DIP SIEMENS DIP16

• Supply Voltage (V_S): 8V to 18V
• Supply Current (I_S): Typically 6.5 mA
• Output Current (Pins 14, 15): Up to 250 mA
• Operating Frequency: 10 Hz to 500 Hz
• Operating Temperature Range: -25°C to +85°C
• Package: 16-pin Dual In-line Package (DIP-16)

Features

• Zero-Crossing Detection: Accurately identifies zero voltage crossings for synchronized triggering.
• Adjustable Trigger Angles: Phase angle control from 0° to 180° for precise power management.
• Dual Outputs: Provides two outputs (Q1 and Q2) with both in-phase and inverted signals for versatile control schemes.
• Inhibit Function: Allows disabling of outputs via an external signal for safety and control purposes.
• Pulse Width Modulation: Adjustable pulse widths to accommodate various load requirements.
