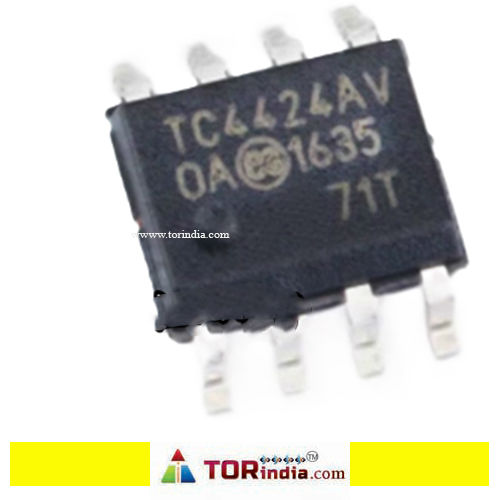

Dual Low-Side Driver: It features two independent low-side gate drivers within a single package, allowing for control of two power switches.High-Speed Gate Drive: Provides high peak output current (e.g., 3A or 6A, depending on the variant) for both sourcing and sinking current. This ensures fast and efficient switching of power MOSFETs and IGBTs. The TC4424 specifically refers to the 3A variant.Low Propagation Delay: Minimizes the delay between the input signal and the output gate drive, crucial for high-frequency power conversion. Typical propagation delay is 55 ns.Wide Input Voltage Range: Operates from a single 4.5V to 18V power supply.CMOS/TTL Compatible Inputs: The input logic is compatible with standard CMOS and TTL logic levels.Robustness: Includes features like robust UVLO (Under-Voltage Lockout) protection to prevent the driver from operating when the supply voltage is too low.Compact SOP-8 Package: Suitable for space-constrained applications.
