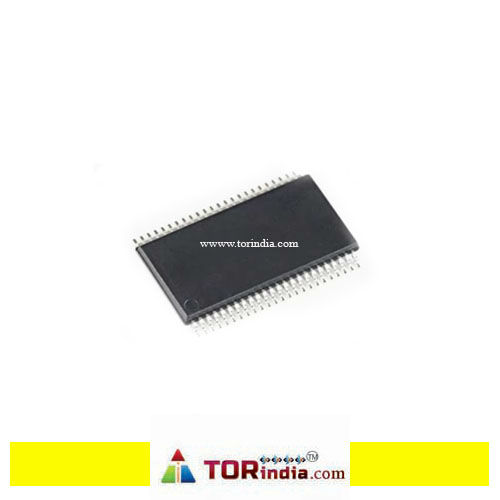

SN74LVC16245ADGGR TSSOP48

• Supply Voltage (V_CC): 1.65 V to 3.6 V
• Input Voltage (V_IN): 0 V to 5.5 V
• Output Voltage (V_OUT): 0 V to V_CC or 0 V to 5.5 V
• High-Level Output Current (I_OH): -24 mA
• Low-Level Output Current (I_OL): 24 mA
• Operating Temperature Range (T_A): -40°C to 125°C
• Propagation Delay (t_pd): Max 4 ns at 3.3 V

Features:

• Operates from 1.65 V to 3.6 V
• Inputs accept voltages up to 5.5 V
• Supports mixed-mode signal operation on all ports (5-V input/output voltage with 3.3-V V_CC)
• I_off supports live insertion, partial-power-down mode, and back-drive protection
• Latch-up performance exceeds 250 mA per JESD 17
• ESD protection exceeds JESD 22 standards: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), and 1000-V Charged-Device Model (C101)

Applications:

• Electronic points of sale
• Printers and other peripherals
• Motor drives
• Wireless and telecom infrastructures
• Wearable health and fitness devices
