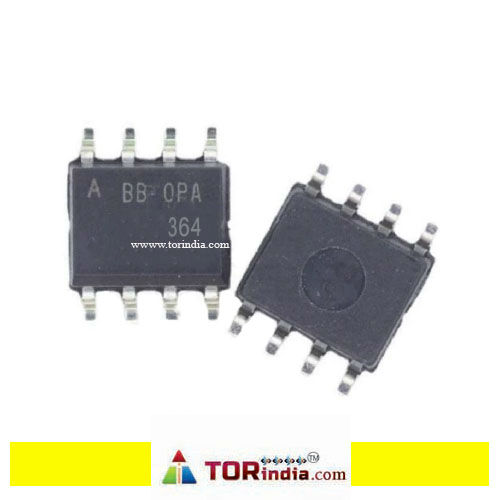

OPA364AIDR SOP8

Low Voltage Operation: Designed to operate on single supplies from 1.8 V to 5.5 V.High Common Mode Rejection Ratio (CMRR): Offers 90 dB typical CMRR without the crossover associated with traditional complimentary input stages. This makes it suitable for driving analog-to-digital (A/D) converters without degrading linearity or THD.Rail-to-Rail Input and Output: The input common-mode range includes both the negative and positive supplies, and the output voltage swing is within 10 mV of the rails.Bandwidth: Features a bandwidth of 7 MHz.Slew Rate: Provides a slew rate of 5 V/µs.Low Offset Voltage: Offers a maximum input offset voltage of 500 µV.Low Quiescent Current: Draws a low quiescent current of 750 µA per channel.Shutdown Mode (OPA363 family): The OPA363 family, which is related, includes a shutdown mode that reduces standby current to less than 1 µA.Input Bias Current: Features a low input bias current of 10 pA.Wide Temperature Range: Specified for operation from –40°C to +125°C.

Variants:
