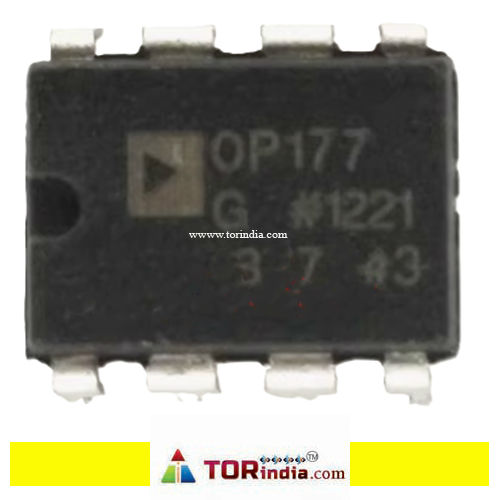

OP177G DIP-8 OP177GPZ OP177GP OP177 DIP8

₹ 275.00
  • In Stock
  • 1
Ultralow Input Offset Voltage (VOS): The OP177 has an ultralow offset voltage of only 25 µV maximum at room temperatureOutstanding Offset Voltage Drift: Features a low input offset voltage drift of 0.3 µV/°C maximum. This eliminates the need for external VOS adjustment and increases system accuracy over temperatureExcellent Open-Loop Gain and Gain Linearity: Provides an open-loop gain of 12 V/µV typical. This gain is maintained over the full ±10 V output range.High Common-Mode Rejection Ratio (CMRR): Offers a CMRR of 130 dB minimumHigh Power Supply Rejection Ratio (PSRR): Features a PSRR of 115 dB minimumLow Supply Current: Consumes a low supply current of 2.0 mA maximum.Low Noise: This low noise, bipolar input operational amplifier is also a cost effective alternative to chopper-stabilized amplifiersFits Industry-Standard Sockets: Compatible with industry-standard precision operational amplifier sockets.Compact 8-pin PDIP Package: Housed in an 8-lead PDIP package, suitable for through-hole mounting applicationsWide Operating Temperature Range: The OP177 is offered in the ?40°C to +85°C extended industrial temperature ranges.

Variants:
var-image
Add To Cart Buy Now
