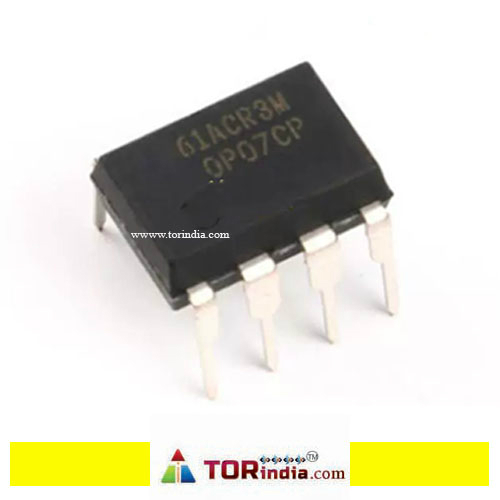

OP07 dip8,op07cp dip-8 low offset operational amplifier ic chip op07cp

The OP07 stands out with its exceptionally low input offset voltage, typically as low as 50 µV. It is trimmed at the wafer stage to achieve this low offset, often eliminating the need for external nulling in many applications.High Open-Loop Gain: Provides a high open-loop gain, typically 100,000 V/V or 200,000 V/V. This high gain ensures precise and reliable amplification, especially of weak signals.Low Input Bias Current: Features very low input bias current, typically around 1 nA or 4 nA. This minimizes signal loading, making it suitable for applications with high source impedance and in low-frequency circuits.Excellent Stability: Offers excellent stability of offsets and gain over time and variations in temperature. It also exhibits very low offset voltage drift, with a maximum of 1.3 µV/°C.Low Noise: Features low input voltage noise, typically 0.6 µV p-p maximum. This makes it suitable for high-fidelity audio, medical instrumentation, and other high-accuracy measurement systems.Wide Supply Voltage Range: Can operate from a wide range of supply voltages, typically ±3 V to ±18 V or ±22 V maximum.High Common-Mode Rejection Ratio (CMRR): Boasts a high CMRR, typically 106 dB or more. This ensures high accuracy, even in non-inverting circuit configurations.Internal Frequency Compensation: Includes internal frequency compensation, simplifying circuit design.Standard Pinout: Follows the standard op-amp pin configuration in the DIP-8 package, with Pin 2 for inverting input, Pin 3 for non-inverting input, Pin 4 for negative power supply, Pin 6 for output, and Pin 7 for positive power supply. Pins 1 and 8 are used for offset voltage trim.

Variants:
