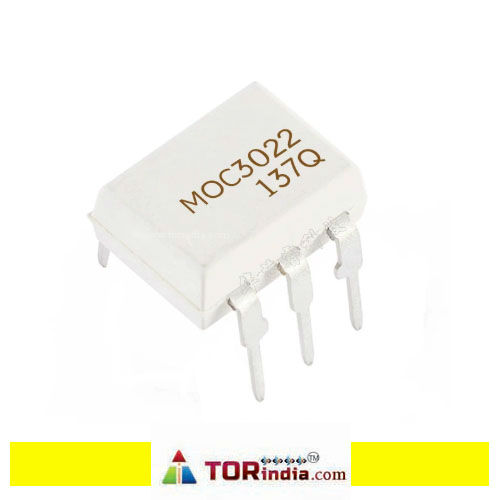

Random Phase Control: It allows the output triac to be triggered at any point in the AC cycle, which is essential for applications requiring variable power control, such as dimming or motor speed regulation.High Off-State Voltage: It can block voltages up to 400V.High Isolation Voltage: It provides robust isolation of at least 5000 Vrms between the input and output circuits.Low Trigger Current: It requires a maximum LED trigger current (IFT) of 10 mA to activate the triac output, according to DigiKey.Compact DIP-6 Package: It's housed in a standard 6-pin Dual In-line Package (DIP), suitable for through-hole mounting.Safety Approvals: It holds various safety approvals, including UL, cUL, VDE, CQC, TUV, and CSA.Enhanced dv/dt Capability: It has a static dv/dt of 1 kV/µs (minimum) to reduce false triggering due to voltage transients.Wide Operating Temperature Range: It functions reliably within an operating temperature range of -40°C to +100°C.
