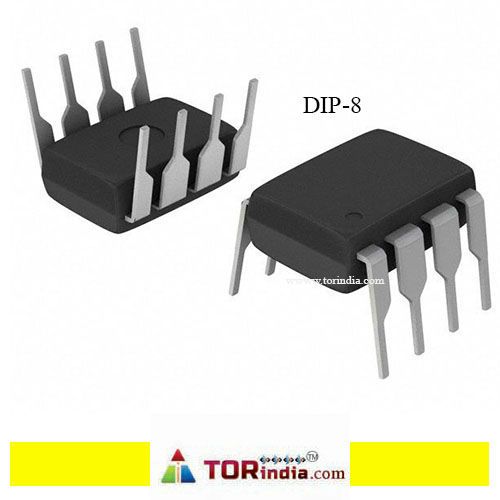

Precision 60Hz Generator: Designed to generate a precise 60 Hz reference signal from a high-frequency quartz crystal, often used as a calibrator for standard frequency. It can also generate a 1 Hz output and can be synchronized with the power line frequency for better long-term stability.17 Binary Divider Stages: Contains 17 binary divider stages, allowing it to accurately divide down a high-frequency crystal input.Crystal Oscillator: Features a crystal oscillator that can use commonly available high-frequency quartz crystals, such as a 3.579545 MHz color burst crystal.Two Buffered Outputs: Provides two buffered outputs:One output is the crystal frequency, useful for tuning purposes.The other output is the full division output (the 17th stage output), which provides the 60 Hz signal.High Speed: Can operate at high speeds, typically up to 4 MHz at a supply voltage of 10V.Wide Supply Voltage Range: Operates from a wide supply voltage range of 3V to 15V.Low Power Consumption: Features low power consumption, making it suitable for various electronic projects.Fully Static Operation: Ensures reliable and stable performance.
