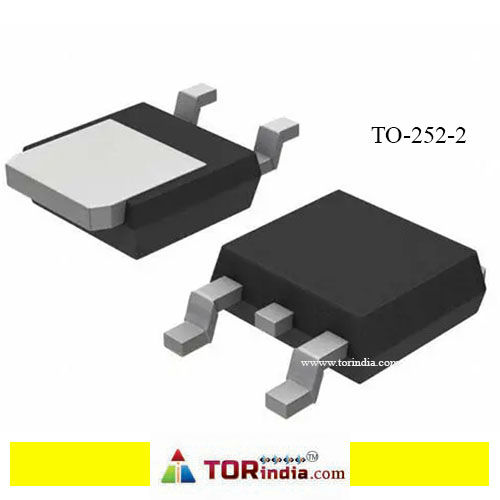

MJD45H11RIG TO-252 45H11 Trans GP BJT PNP 80V 8A P-CHANNAL,J45H11G TO-252,

model:                                 MJD45H11RLG

Is it lead-free?                      Lead Free

life cycle:                              Active

Contacts:                             3

Risk Level:                            0.46

Shell connection:                  COLLECTOR

Maximum collector current (IC): 8 A

Collector-emitter maximum voltage:     80 V

Configuration:                      SINGLE

Minimum DC current gain (hFE):           40

Moisture Sensitivity Level:      1

Number of components:       1

Number of terminals:            2

Maximum Operating Temperature:       150 °C

Peak Reflow Temperature (Celsius):      260

Polarity/Channel Type:          PNP

Maximum power dissipation (Abs):       20 W

Surface Mount:                     YES

Terminal surface:                  Tin (Sn)

Terminal type:                      GULL WING

Terminal Location:                SINGLE

Maximum time at peak reflow temperature:      40

Transistor Applications:         SWITCHING

Transistor component materials:          SILICON
