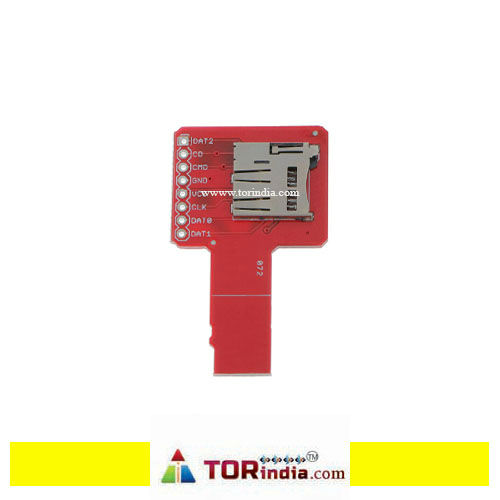

Compatibility: Designed to interface seamlessly with standard microSD card sockets and is compatible with Arduino and other microcontroller platforms.
Interface: Breaks out all necessary pins to an 8-pin, 0.1" pitch header, providing access to SPI communication lines for external monitoring devices such as logic analyzers.
Dimensions: Approximately 4.7 cm x 2.8 cm (1.85" x 1.10").
Usage: Insert the adapter into the existing microSD card socket, then place the microSD card into the on-board socket of the adapter. This setup enables real-time monitoring of the signals passed between the microSD card and the host system.
Applications:
Debugging and Development: Ideal for developers needing to monitor SPI bus transactions between a microSD card and a microcontroller, facilitating the identification and resolution of communication issues.
Educational Purposes: Serves as a practical tool for learning and teaching about SPI communication and microSD card interfacing in embedded systems.
