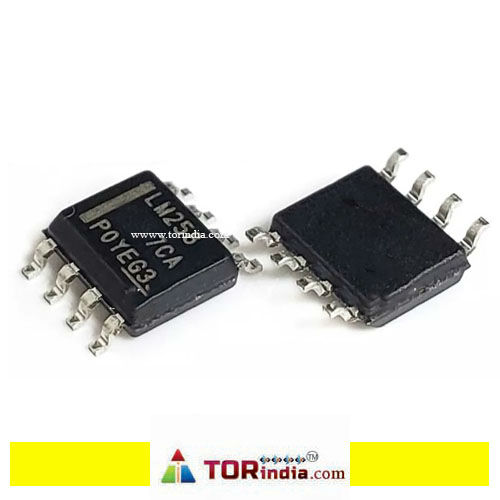

LM258DR SOP8 SMD,8PIN SMD IC

Dual Op-Amp: Contains two independent operational amplifiers in a single 8-pin package.Low Power Consumption: Very low supply current, typically 350µA per amplifier.Wide Supply Voltage Range: Can operate from a single power supply of 3V to 32V or dual supplies of ±1.5V to ±16V.Internal Frequency Compensation: Simplifies circuit design by eliminating the need for external frequency compensation components.Low Input Offset Voltage: Features a low input offset voltage, typically 3mV (maximum).Input Common-Mode Voltage Range Includes Ground: Allows for sensing signals close to ground potential.Large Voltage Gain: Offers a voltage gain of 100 dB (typical).Bandwidth: Provides a bandwidth of 1MHz at unity gain.Slew Rate: Features a slew rate of 0.7V/µs.Low Input Bias Current: Features low input bias current, typically 20nA.Output Short-Circuit Protection: The output is protected against short circuits.Operating Temperature Range: Operates within a temperature range of -25°C to +85°C.
