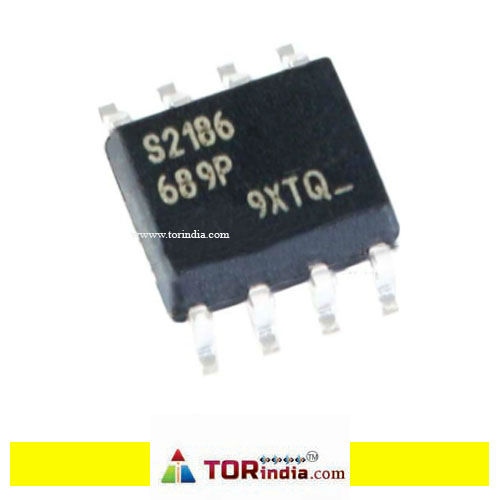

IRS2186STRPBF SOP8 MOSFET DRVR 600V 4A 2-OUT Hi/Lo Side Non-Inv SMD bridge drive chip

IRS2186STRPBF SOP8, MOSFET DRVR 600V 4A 2-OUT Hi Lo Side Non-Inv, IRS2186S, S2186, SMD bridge drive chip, 52186,

Item Code: 5511-SOP-8-IRS2186STRPBF

Description: IC DRIVER HI/LO SIDE 600V 8-SOIC

Detailed description: Half-Bridge Gate Driver IC Non-Inverting 8-SOIC

Driver configuration: half bridge

Channel type: independent

Number of drives: 2

Gate type: IGBT, N-channel MOSFET

Voltage - Power supply: 10 V ~ 20 V

Logic voltage - VIL, VIH: 0.8V, 2.5V

Current - Peak Output (Sink, Source): 4A, 4A

Input type: non-inverting

High side voltage - maximum (bootstrap): 600V

Rise/fall time (typ): 22ns, 18ns

Working temperature: -40°C ~ 150°C (TJ)

Installation type: surface mount

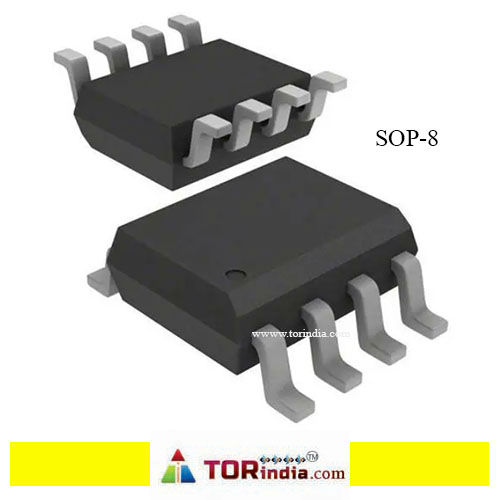

Package/Casing: 8-SOIC (0.154", 3.90mm wide)

Basic part number: IRS2186SPBF

Other names: IRS2186STRPBBFTR SP001546274

Compliance with lead-free requirements/ Compliance with RoHS regulations: Lead-free/ Compliance with RoHS regulations

Moisture Sensitivity Level (MSL): 2 (1 year)
