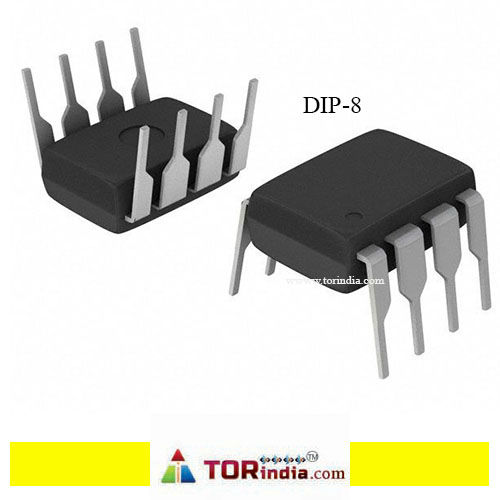

IR2121 dip8 IR2121PBF bridge driver

IR2121 product parameters Description: IC MOSFET DRIVER LOW-SIDE 8-DIP Detailed description: Low-Side Gate Driver IC Non-Inverting 8-DIP Drive Configuration: Low Side Channel type: single channel Number of drives: 1 Gate Type: IGBT, N-Channel MOSFET Voltage - Power supply: 12 V ~ 18 V Logic voltage - VIL, VIH: 0.8V, 2.2V Current - Peak output (sink, source): 1.6A, 3.3A Input Type: Non-inverting Rise/Fall Time (Typical): 43ns, 26ns Working temperature: -40°C ~ 150°C (TJ) Mounting Type: Through Hole Package/Case: 8-DIP (0.300", 7.62mm) Supplier Device Package: 8-DIP
