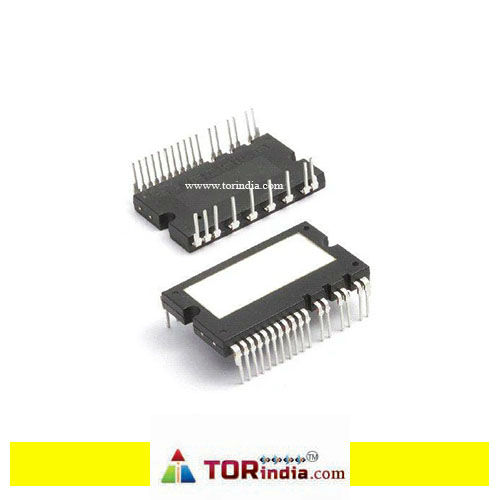

FNC42060F2 IGBT

• IGBT Inverter:

  • Voltage Rating: 600 V
  • Current Rating: 20 A
  • Configuration: 3-phase

• Integrated Features:

  • Built-in gate drivers
  • Low-loss, short-circuit rated IGBTs
  • Built-in bootstrap diodes with dedicated Vs pins for simplified PCB layout
  • Built-in NTC thermistor for temperature monitoring
  • Separate open-emitter pins from low-side IGBTs for three-phase current sensing

• Protection Features:

  • Under-voltage lockout (UVLO)
  • Over-current shutdown
  • Thermal monitoring
  • Fault reporting

• Isolation Rating: 2000 Vrms/min

• Package: 26-PowerDIP Module (1.024", 26.00 mm)

Applications:

• Home appliance motor control
• Industrial motor drives
