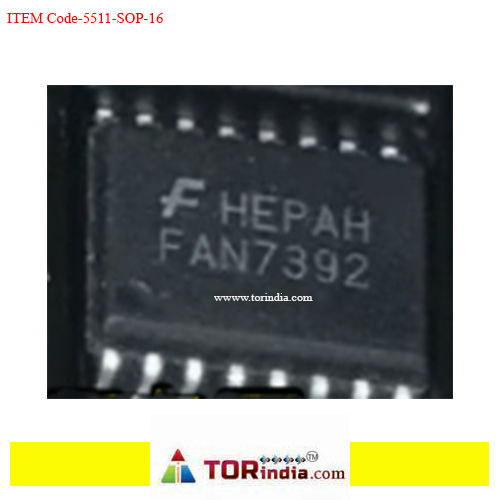

FAN7392 DIP UPS FAN7392MX high side and low side gate drive IC power chip original authentic hot sale

model:                                                         FAN7392MX

Number of needles:                                       16

Reach Compliance Code?                             compliant

Risk Level:                                                     5.31

Built-in protection:                                        TRANSIENT; UNDER VOLTAGE

Interface IC Type:                                          HALF BRIDGE BASED PERIPHERAL DRIVER

length:                                                         10.3 mm

Moisture Sensitivity Level:                              3

Number of features:                                      1

Number of terminals:                                     16

Maximum Operating Temperature:                 125 °C

Minimum Operating Temperature:                 -40 °C

Output current flow direction:                        SOURCE AND SINK

Peak Reflow Temperature (Celsius):                260

power supply:                                               15 V

Maximum seat height:                                   2.65 mm

Subcategories:                                              MOSFET Drivers

Maximum supply voltage:                              20 V

Minimum supply voltage:                               3.3 V

Nominal supply voltage:                                15 V

Surface Mount:                                             YES

Temperature Rating:                                     AUTOMOTIVE

Terminal surface:                                           Matte Tin (Sn)

Terminal type:                                               GULL WING

Terminal Pitch:                                              1.27 mm

Terminal Location:                                         DUAL

Disconnect time:                                           0.2 µs

Connection time:                                           0.18 µs
