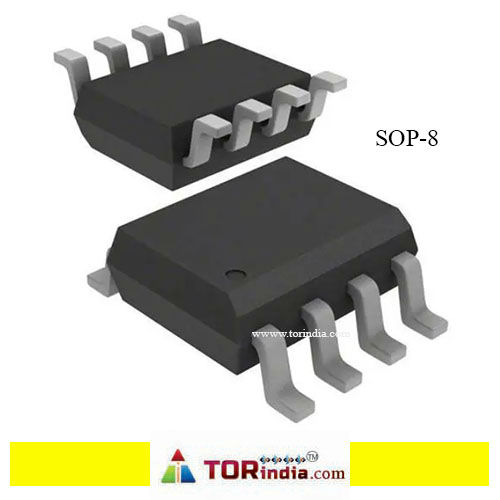

FAN73832 sop-8

  • Image
₹ 140.00
  • In Stock
  • 1
Half-Bridge Configuration: It's designed to drive both high-side and low-side power devices in a half-bridge setup.High Voltage Operation: Capable of driving MOSFETs and IGBTs in applications up to +600V.Floating Channel for Bootstrap Operation: It features a floating channel, enabling bootstrap operation for the high-side driver.High-Side Output In-Phase with Input: The high-side output signal is in phase with the input signal.Common-Mode dv/dt Noise Canceling Circuit: Built-in circuitry minimizes the effects of common-mode noise, ensuring stable operation even in environments with high dv/dt noise.Output Current Capability: The output drivers are capable of sourcing typically 350mA and sinking typically 650mA, making them suitable for driving various half- and full-bridge inverters.Programmable Dead-Time: Includes a programmable dead-time control function, allowing for precise control over the delay between the high-side and low-side switching.Extended Allowable Negative VS Swing: Supports negative VS swings down to -9.8V for reliable signal propagation.Undervoltage Lockout (UVLO): Built-in UVLO functions for both channels prevent malfunctions if the VDD and VBS voltages drop below specified thresholds.Wide Operating Temperature Range: Operates over a temperature range of -40°C to +125°C.

Variants:
var-image
Add To Cart Buy Now
Category: SEMICONDUCTORS-IC-FET-SMD-TRANSISTOR

Rating And Reviews

Average User Rating

0

Rating Breakdown

5
0
4
0
3
0
2
0
1
20% Complete (primary)
0

FAN73832 sop-8

SEMICONDUCTORS-IC-FET-SMD-TRANSISTOR

model:                                                         FAN73832M

Risk Level:                                                     5.78

High-side driver:                                           YES

Input characteristics:                                     STANDARD

Interface IC Type:                                          HALF BRIDGE BASED IGBT/MOSFET DRIVER

length:                                                         4.92 mm

Number of features:                                      1

Number of terminals:                                     8

Maximum Operating Temperature:                 125 °C

Minimum Operating Temperature:                 -40 °C

Output characteristics:                                  PUSH-PULL

Maximum seat height:                                   1.8 mm

Maximum slew rate:                                      0.85 mA

Maximum supply voltage:                              20 V

Minimum supply voltage:                               15 V

Nominal supply voltage:                                15 V

Surface Mount:                                             YES

Temperature Rating:                                     AUTOMOTIVE

Terminal type:                                               GULL WING

Terminal Pitch:                                              1.27 mm

Terminal Location:                                         DUAL

Disconnect time:                                           0.23 µs

Connection time:                                           0.73 µs

width:                                                          3.95 mm
