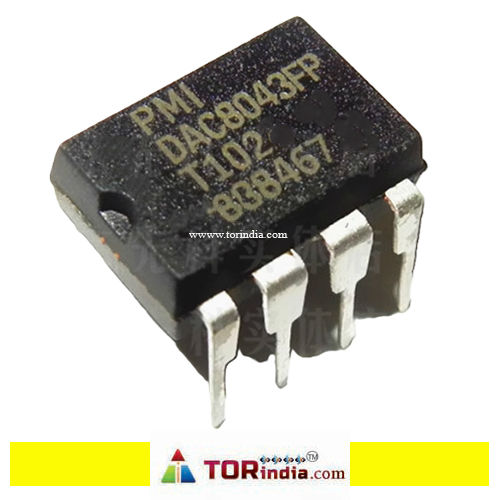

DAC8043FP DIP8 Digital Analog Converter, Single, 12-bit serial input DA converter d

12-bit Resolution: Provides 4096 unique analog output levels, making it suitable for applications requiring high precision.Single-Channel Output: Converts one digital input signal to one analog output signal.Serial Input: Utilizes a 3-wire serial interface, reducing the number of input pins and saving board space.Fast Settling Time: A typical settling time of 1 µs allows for fast response times in dynamic systems.Low Power Dissipation: The 3-wire serial interface contributes to reduced power dissipation.Single +5V Power Supply: Operates from a single +5V power supply, simplifying power management requirements.Internal Circuitry: Contains a 12-bit serial-in, parallel-out shift register, a 12-bit DAC register, a 12-bit CMOS DAC, and control logic.Improved Linearity and Gain Error Performance: Contributes to greater accuracy and may reduce the need for external trimming components.TTL/CMOS Compatible: Easy to interface with various logic families.Operating Temperature: Rated for an operating temperature range of -40°C to +85°C.Double Buffering: Allows for asynchronous updating of the DAC register without disturbing the output, ensuring smooth transitions.ESD Protected: Provides protection against electrostatic discharge, ensuring reliable operation.

Variants:
