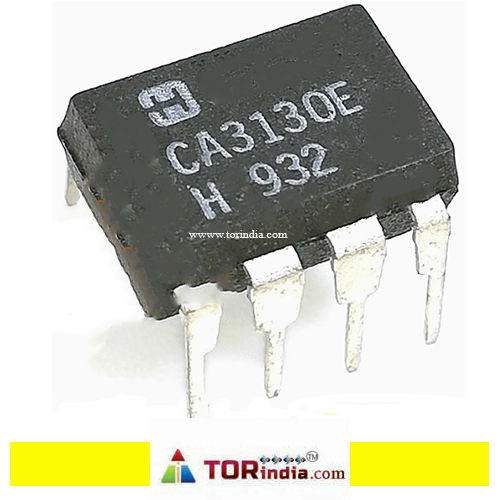

BiMOS Technology: Combines a high-impedance MOS transistor input stage with a high-voltage bipolar transistor output stage. This hybrid approach leverages the advantages of both technologies.High Input Impedance: Features a very high input impedance (1.5 T? typical). This minimizes loading on signal sources, making it ideal for applications with high-impedance transducers or where signal integrity is critical.Low Input Bias and Offset Currents: Typically features very low input bias currents (e.g., 50 pA typical at 25°C) and offset currents.Wide Common-Mode Input Voltage Range: The input common-mode voltage range can be swung negative by 0.5V below the negative supply rail in single-supply operation.Wide Operating Voltage Range: Can operate from a single power supply ranging from 5V to 16V, or dual supplies from ±2.5V to ±8V.High Slew Rate: Offers a high slew rate of 10 V/µs.Internal Phase Compensation: Includes internal compensation for phase stability, simplifying circuit design.Low Input Offset Voltage: Offers low input offset voltage (2 mV typical).Output Short-Circuit Protection: Features output short-circuit protection for durability.High Common-Mode Rejection Ratio (CMRR): Offers a CMRR of 90 dB typical.Adjustable Compensation and Offset Null: Includes pins (Offset Null/Compensation pins) for adjusting compensation and nulling the offset voltage.
