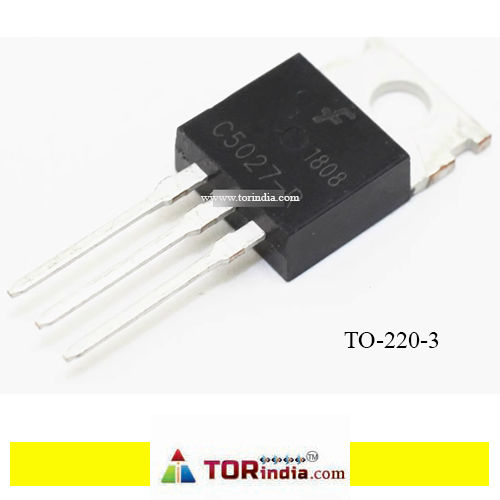

Type Designator: 2SC5027-R Material of Transistor: Si Polarity: NPN Maximum Collector Power Dissipation (Pc): 50 W Maximum Collector-Base Voltage |Vcb|: 1100 V Maximum Collector-Emitter Voltage |Vce|: 800 V Maximum Emitter-Base Voltage |Veb|: 7 V Maximum Collector Current |Ic max|: 3 A Max. Operating Junction Temperature (Tj): 150 °C Transition Frequency (ft): 15 MHz Collector Capacitance (Cc): 35 pF Forward Current Transfer Ratio (hFE), MIN: 15 Noise Figure, dB: - Package: TO220
