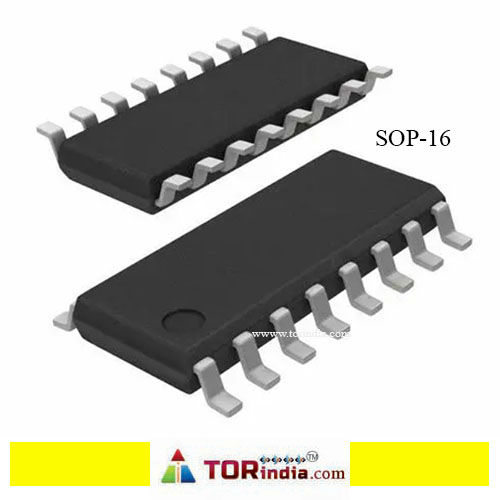

model: AM26LS31CDR
Number of needles: 16
Risk Level: 0.54
Differential Output: YES
Number of drive
positions: 4
Maximum high level
input current: 0.00002 A
Input
characteristics: STANDARD
Interface IC Type: LINE
DRIVER
Interface standards: EIA-422-B;
TIA-422-B; V.11
length: 9.9
mm
Moisture Sensitivity
Level: 1
Number of features: 4
Number of terminals: 16
Maximum Operating
Temperature: 70 °C
Minimum output swing: 2 V
Output
characteristics: 3-STATE
Maximum output low
current: 0.02 A
Output Polarity: COMPLEMENTARY
Peak Reflow
Temperature (Celsius): 260
power supply: 5
V
Maximum seat height: 1.75 mm
Subcategories: Line
Driver or Receivers
Maximum slew rate: 80 mA
Maximum supply
voltage: 5.25
V
Minimum supply
voltage: 4.75
V
Nominal supply
voltage: 5
V
Supply Voltage 1 -
Maximum: 5.25 V
Supply voltage 1-min: 4.75 V
Supply Voltage 1-Nom: 5 V
Surface Mount: YES
technology: BIPOLAR
Temperature Rating: COMMERCIAL
Terminal surface: Nickel/Palladium/Gold
(Ni/Pd/Au)
Terminal type: GULL
WING
Terminal Pitch: 1.27
mm
Terminal Location: DUAL
Maximum transmission
delay: 20 ns
width: 3.9
mm
