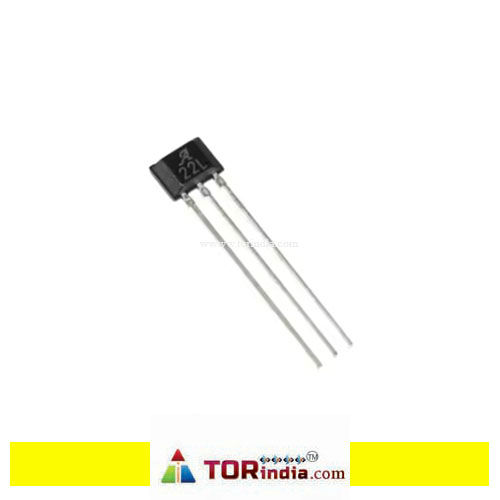

A1122LUA-T HALL SENSORE Chopper Stabilized Magnetic Sensor Unipolar Hall Effect Switch TO-92 Silkscreen A22L HALL SENSOR

• Supply Voltage (V_CC): 3 V to 24 V
• Supply Current (I_CC): 4 mA (maximum)
• Output Current (I_OUT): 25 mA (maximum)
• Operating Point (B_OP): 120 G to 200 G
• Release Point (B_RP): 110 G to 190 G
• Hysteresis (B_HYS): 10 G to 42 G
• Operating Temperature Range (T_A): -40°C to +150°C
• Package: 3-pin SIP (Suffix UA)

Features:

• Chopper stabilization for minimal offset drift
• Resistant to physical stress
• Superior temperature stability
• Output short-circuit protection
• Operation from an unregulated supply
• Reverse-battery protection
• Solid-state reliability

Applications:

• Automotive
• Industrial
• Consumer electronics
