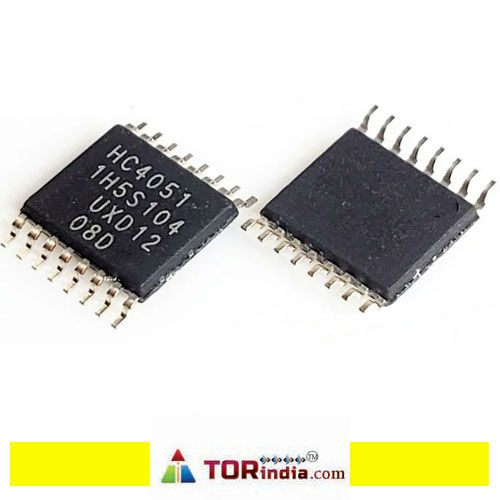

8-Channel Analog Multiplexer/Demultiplexer: It functions as a single-pole octal-throw analog switch (SP8T), suitable for 8:1 multiplexing or 1:8 demultiplexing applications.Wide Analog Input Voltage Range: It can handle analog signals ranging from -5V to +5V.Low ON-Resistance: The switch exhibits low ON-resistance, minimizing signal loss. For example, it is typically 80 ? at VCC - VEE = 4.5 V.Logic Level Translation: It can translate logic levels, allowing 5V logic to interface with ±5V analog signals.High Noise Immunity: As a CMOS device, it offers high noise immunity.CMOS Low Power Dissipation: It features low power dissipation.Break-Before-Make Switching: It has a built-in break-before-make feature, which prevents momentary short circuits during channel switching.Enable Input: Includes an enable input (E) that, when HIGH, disables all switches to their OFF state.Inputs with Clamp Diodes: The inputs include clamp diodes, which enable the use of current-limiting resistors for interfacing inputs to voltages exceeding VCC.ESD Protection: Provides robust ESD protection, including HBM exceeding 2000V and CDM exceeding 1000V.Wide Operating Voltage Range: Operates from 2V to 10V (single supply) or ±1.5V to ±5V (dual supply), and complies with JEDEC standards.Wide Operating Temperature Range: Specified from -40°C to +85°C and also available with extended temperature range up to +125°C.Automotive Qualification (for some variants): Some versions are qualified in accordance with AEC-Q100 (Grade 1), suitable for automotive applications.
