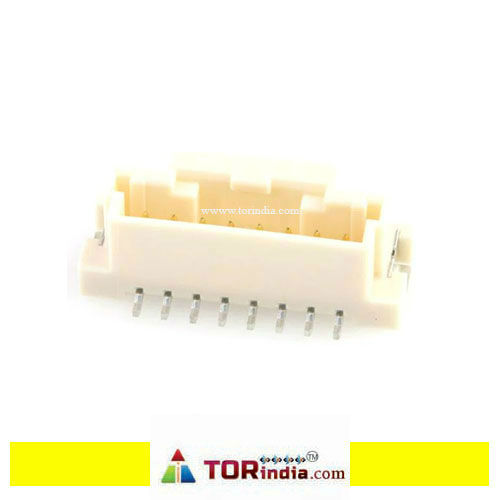

560020-0820 8PIN CONNECTOR 2MM

• Connector Type: Header, Male Pins
• Number of Positions: 8
• Pitch (Mating): 2.00 mm (0.079 inches)
• Number of Rows: 1
• Mounting Type: Surface Mount
• Termination: Solder
• Shrouding: Shrouded - 4 Wall
• Fastening Type: Latch Lock
• Contact Material: Copper Alloy
• Contact Finish (Mating): Tin
• Insulation Material: Polyamide (PA), Nylon
• Insulation Color: Natural
• Current Rating: 3 A
• Voltage Rating: 125 V AC (RMS)/DC
• Operating Temperature Range: -40°C to +105°C
• Flammability Rating: UL94 V-0

Features:

• Solder Retention: Ensures secure attachment during the soldering process.
• Latch Lock: Provides a reliable mating connection, preventing accidental disconnection.
