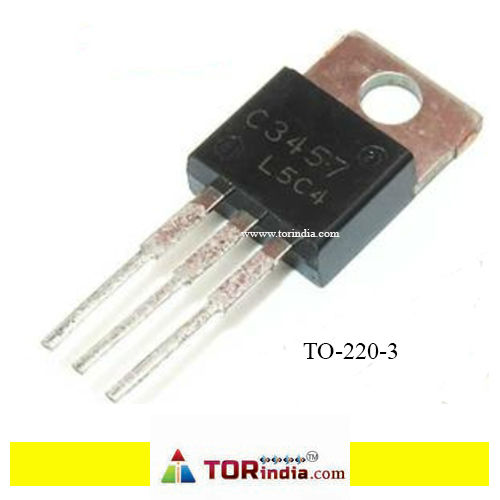

2SC3457 TO-220-3 C3457 TO220 INDUSTRIAL Power Bipolar Transistor, N-CHANNEL 3A, 800V, NPN, TO-220AB,

• Collector-Emitter Voltage (V_CEO): 800 V
• Collector-Base Voltage (V_CBO): 800 V
• Emitter-Base Voltage (V_EBO): 7 V
• Collector Current (I_C): 5 A
• Base Current (I_B): 2 A
• Total Power Dissipation (P_C): 50 W (at case temperature ? 25°C)
• Transition Frequency (f_T): 15 MHz
• Turn-On Time (t_on): 0.5 µs
• Fall Time (t_f): 0.3 µs
• Package: TO-220

Features:

• High breakdown voltage and reliability
• Fast switching speed
• Wide Safe Operating Area (ASO)

Applications:

• Switching regulators
• High-speed switching applications
